Extraction
Access to this model extraction is subject to the "Generate model" right.
From the Steering tab
The button Model
allows you to generate .doc or .xls mock-ups for each course in the selected component or catalog.
When you click on the button, a pop-up window opens, allowing you to select the parameters for extracting the model.
|
Parameter |
Description |
Mandatory |
|---|---|---|
|
Component |
Select the component to be extracted from the drop-down list. If you do not select a component, the report will be run on all components. |
No |
|
Catalog |
Select the catalog you wish to extract. |
Yes |
|
Language |
Select the language of the content to be extracted. |
Yes |
|
Output format |
Select report output format: Word (doc) - default - or Excel (xls) |
Yes |
The output format is available from version 4.3 onwards.
Click on OK to confirm.
A new pop-up will open to confirm your choice to start extracting the model.
From the "Advanced" tab of a course
The Mock-up button is used to generate mock-ups in .doc or .xls format.
When you click on the button, a pop-up window opens, allowing you to select the parameters for extracting the model.
The choice of output format is available from version 4.3.
|
Parameter |
Description |
Mandatory |
|---|---|---|
|
Output format |
Select report output format: Word (doc) - default - or Excel (xls) |
Yes |
Click on OK to confirm.
A new pop-up will open to confirm your choice to start extracting the model.
Find the extraction generated
From the control tab, click on the search button in the search criteria to bring up the model extraction.
To download the extraction you can double-click on the extraction or go to the Steering tab and click on the Download report button.
The downloaded report is in zip format and contains one mock-up file per course.
Results

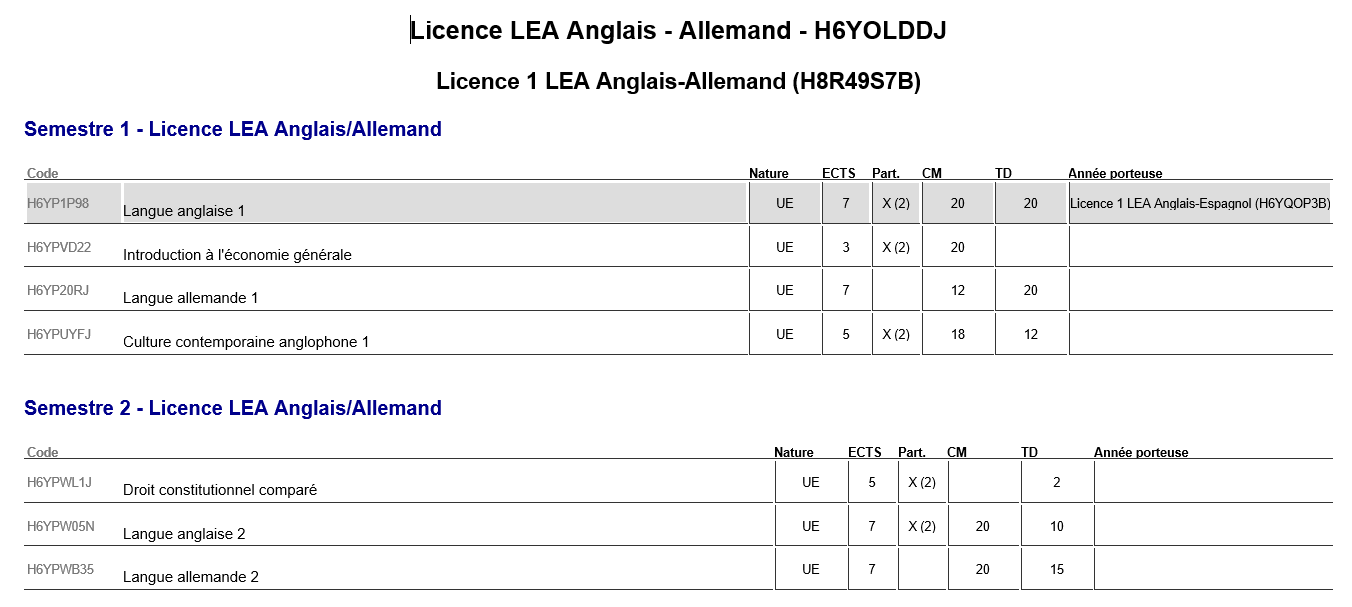

Preview of a training extraction file :
The following information is displayed for each course:
- The Ametys code for ELPs
- ELP wording
- The nature of ELPs, e.g. subject, UE, TD
- ECTS
- Carrier stage: this is displayed if the "Carrier stage" field has been entered in an ELP, and if the carrier stage is different from its hierarchy.
For example, in the model below, the Geography license has ELPs shared with the L1 History license.
The ELP ancient history has no carrier stage because the "Carrier stage" field has not been filled in.
