Report
Access to this report is subject to the "Generate MCC differential report between catalogs" right.
The button MCC differential ratio
allows you to compare, in .doc or .xls format, calculations of knowledge control procedures between 2 catalogs, for a given component.
Knowledge control procedures must be entered before running the report, see the MCC entry page.

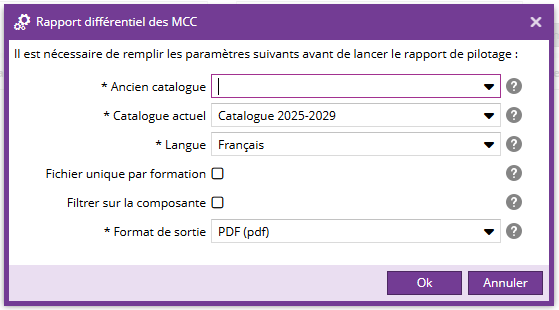

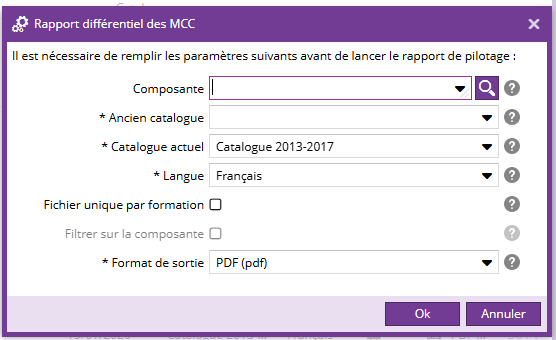

Clicking on the button opens a pop-up window for the user to select the parameters for the MCC differential report.
|
Parameter |
Description |
Mandatory |
|---|---|---|
|
Component |
Select from the drop-down list the component on which the report is to be run. If you do not select a component, the report will be run on all components. |
No |
|
Old Catalogue |
Select the old catalog on which the comparison is based |
Yes |
|
Current catalog |
Select reference catalog |
Yes |
|
Language |
Select the language for content included in the report. |
Yes |
|
Output format |
Select report output format: Word (doc) - default - or Excel (xls) |
Yes |
The output format is available from version 4.3 onwards.
Click on OK to confirm.
A new pop-up will open to confirm your choice to run the MCC differential report.
From the piloting tab, click on the search button in the search criteria to display the MCC differential report.
To download the report, double-click on it or go to the Steering tab and click on the Download report button.
The downloaded report is in zip format and contains comparison files for each course.
Results
The color code for the result is :
- For a modified value :
- In striped light grey, the value used in the old catalog.
- In blue , the value modified in the new catalog
- For a deleted value: red (present in the old catalog and absent from the new catalog)
- For added value: green (absent in the old catalog and present in the new catalog).

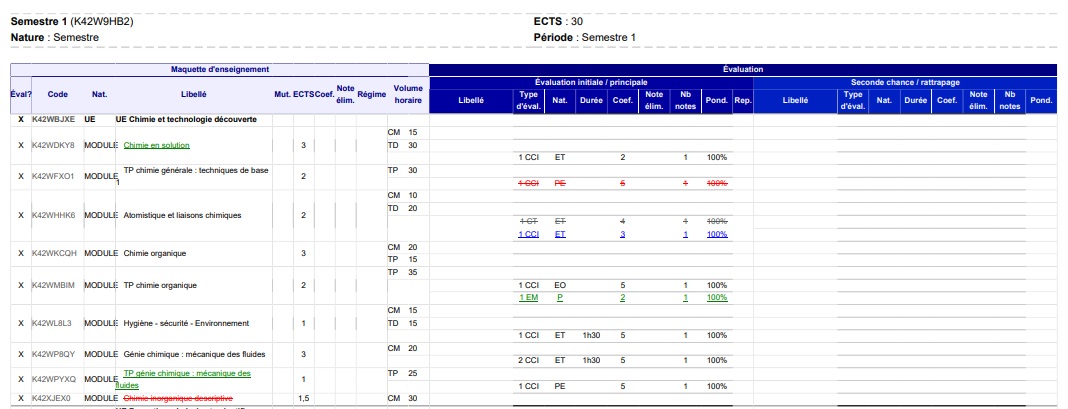

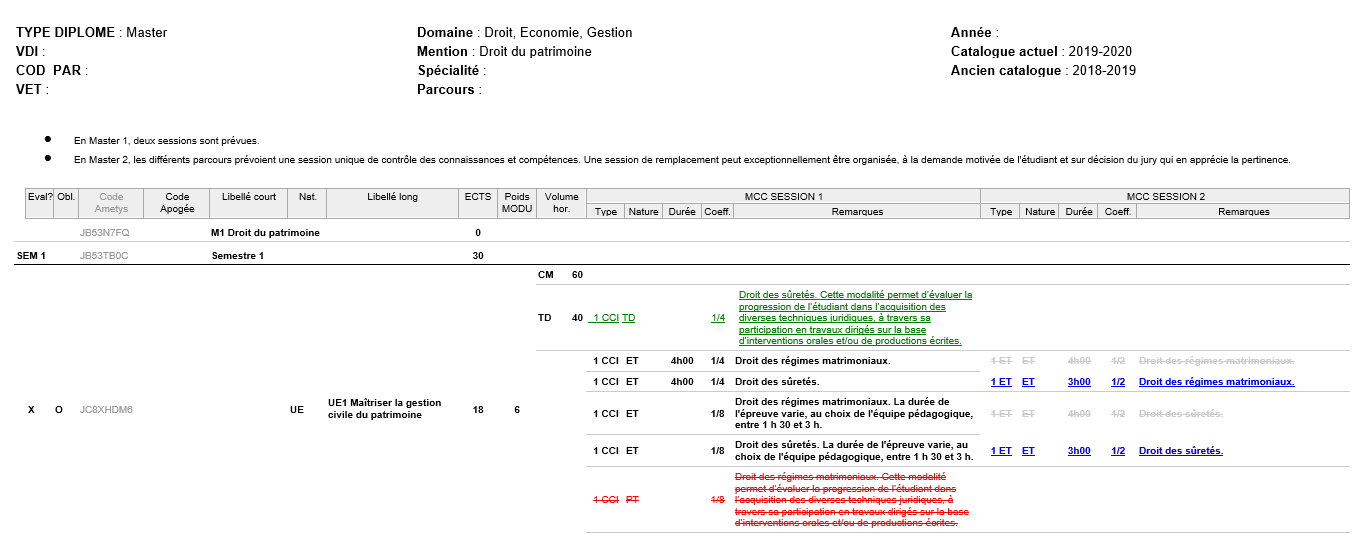

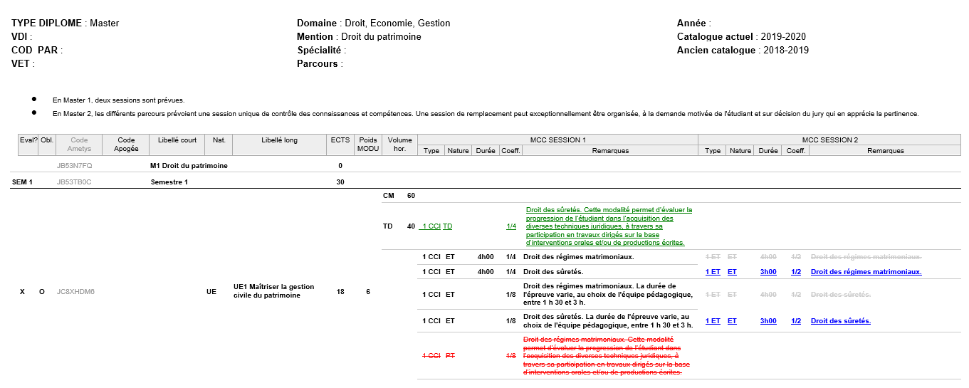

Example:
